3D Stone Sculpture Carving Machine3D 平面雕镂机
领跑智能制作新“石”代
3D Stone Sculpture Carving Machine3D 平面雕镂机
隶属关系品脾：
隶属于种别：雕镂武器
想领会更多相干产物信息，请接洽咱们！
0594-2197723
hualongmc@163.com
3D 平面雕镂机

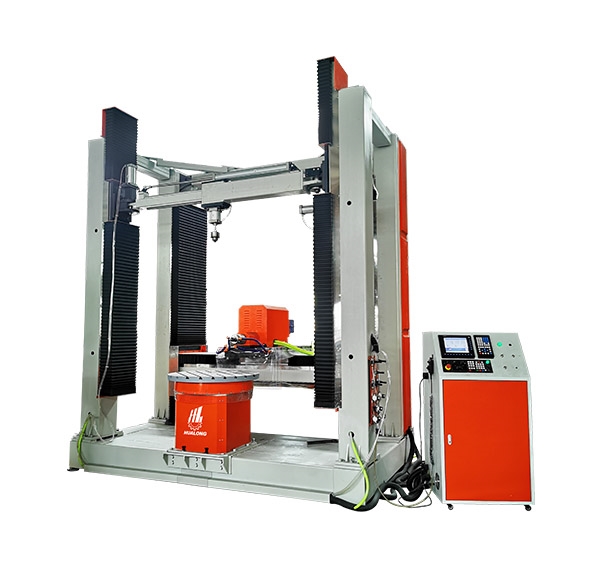

HLSD3-1525 是一款装备铣刀的四轴数控机床，还装备了可切换的锯片，用于疾速粗加工。它可以或许对各类岩石停止三维平面雕镂，如大理石、花岗岩、石英岩、砂岩某人造石或陶瓷、玻璃、塑料、木料或泡沫等。
它首要利用于墓碑加工行业、家居装潢行业、工艺品行业，用于雕镂石雕佛像、石雕栏、石匠艺品、石艺术名目及创意等。
3D Stone Sculpture Carving Machine
HLSD3-1525 is a 4 axis CNC machine mounted with milling cutter for engraving and switchable saw blades for fast roughing. It can real💯ize 3-dimensional stereoscopic engraving for all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass, plastic, wood or foam e♑tc.
It's ma🐎inly applied to tombstone processing industry, home decoration industry, arts and crafts industry for carving stone Buddhas statues & sculptures, stone balustrades, stone crafts, stone artwork projects & ideasಞ etc.
这台机器装备了可切换的双处置头。
锯片先停止疾速粗加工，从而节流了后续雕镂所需的时候。
This machine is mounted with switchable double processinไg heads.
The saw blade make🦩 fast roughing first and savಞe lots of time for next engraving.
Main Features
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Contin🍸ue carv𓆏ing from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Big standing type rotary table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
首要特色
1) 接纳 NcStudio 数控节制体系，装备大尺寸黑色显现屏，操纵简洁易懂。
2) 具有断点规复功效。在电源规复后，可从断点持续雕镂。
3) 与 Artcam JD Paint CAM 软件及其他软件法式兼容。
4) 高机能新型资料机电和驱动器可以或许耐低温、抗打击和顺应卑劣情况，确保任务速率高且精度高。
5) 专业的矢量节制变频器保障多种任务速率、安稳运转，并下降能耗。
6) 大型立式扭转任务台，增添了厚型 PVC 板，进步了平台的承载才能。
7) 钢管车床床身，重心低，承载才能强，不变且利用寿命长。
|
型号
|
HLSD3-1020
|
HLSD3-1525
|
HLSD3-2030
|
|
任务平台尺寸
|
1500*2000mm
|
1500*2500mm
|
2000*3000mm
|
|
X、Y、Z轴活动定位精度
|
0.05/300mm
|
|
X、Y、Z轴活动反复精度
|
0.01
|
|
对角线精度
|
0.6/1000×1000mm
|
|
主轴机电功率
|
7.5+KW(水冷)
|
|
主轴机电可装卡最大刀具
|
φ20mm
|
|
主轴机电冷却体例/主轴转速
|
水冷/0-24000rpm
|
|
疾速挪动速率
|
15m/min
|
|
最高切削进给速率
|
10m/min
|
|
驱动体系
|
伺服体系
|
|
任务电压
|
主机电、主机床：三相380v/50Hz;
|
|
机身外型尺寸
|
3300mm×4500mm×4800mm
|
|
机器分量
|
≈9000KG
|
|
型号
|
HLSD3-1020
|
HLSD3-1525
|
HLSD3-2030
|
|
任务平台尺寸
|
1500*2000mm
|
1500*2500mm
|
2000*3000mm
|
|
X、Y、Z轴活动定位精度
|
0.05/300mm
|
|
X、Y、Z轴活动反复精度
|
0.01
|
|
对角线精度
|
0.6/1000×1000mm
|
|
主轴机电功率
|
7.5+KW(水冷)
|
|
主轴机电可装卡最大刀具
|
φ20mm
|
|
主轴机电冷却体例/主轴转速
|
水冷/0-24000rpm
|
|
疾速挪动速率
|
15m/min
|
|
最高切削进给速率
|
10m/min
|
|
驱动体系
|
伺服体系
|
|
任务电压
|
主机电、主机床：三相380v/50Hz;
|
|
机身外型尺寸
|
3300mm×4500mm×4800mm
|
|
机器分量
|
≈9000KG
|
舒心语音提示：如果想体会更大细节描写，品种、技术规范、标价和正确处理预计，请约见俺们。
